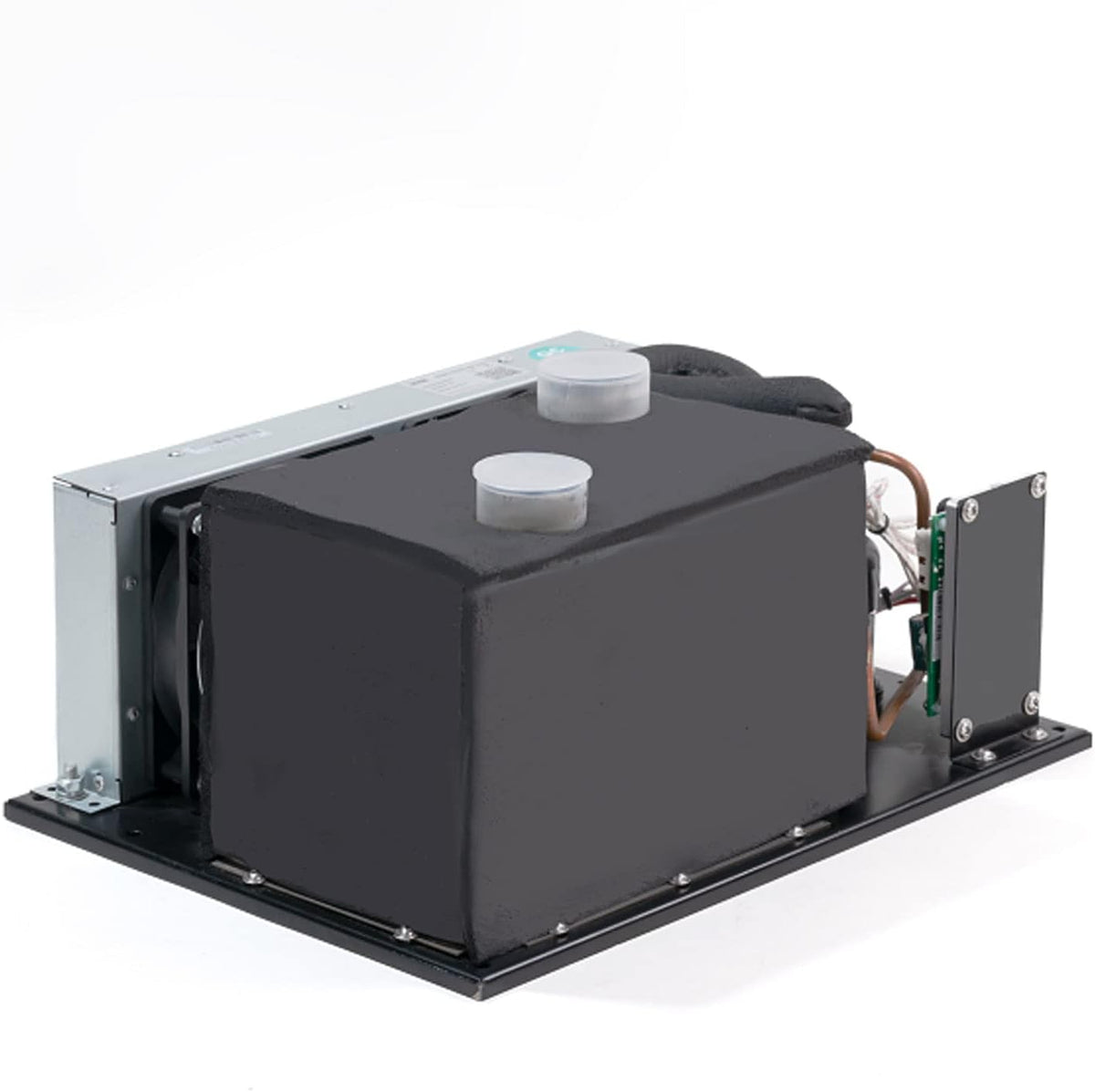

12V 450W Compressor Cooling Module Z47052
12V 450W Compressor Cooling Module Z47052
Compressor Displacement:1.9cc, Start-up Voltage: 9V, Rated Voltage:12V, Voltage Range:9 V - 16 V, Temperature of Outlet:5℃ degree, Rated Current:1~8 A, Max Current:10A,Cooling Capacity : 450W (1,535Btu),Max Power Input: 150 W
High-efficiency components for superior performance,low vibration with anti-vibration cushion.
Similar to the traditional air conditioner, Is available as an outdoor or indoor unit because of its lightest weight and smallest size.Super small volume: 13.3*8.2*5.7 inch,Super light weight: 5.0kgs (11.02lbs).
Suitable for small & confined space cooling, such as cabins, cuddy cabins, EV (eletric vehicle), helicopter, cab,compact off-road camper,carriage cooling for trucks and other specialized vehicles such as excavation vehicles and agricultural vehicles,etc.
High-temperature working condition, which can powered by battery, grid, car power and solar power.
Compressor Type: Rotary DC Inverter Motor
Compressor Displacement:1.9cc
Start-up Voltage: 9V
Rated Voltage:12V
Voltage Range:9 V - 16 V
Temperature of Outlet:5℃ degree
Rated Current:1~8 A
Max Current:10A
Cooling Capacity : 450W (1,535Btu)
Max Power Input: 150 W
Condenser:Micro-channel 126*240*16mm
Fan of Condenser:Centrifugal fan 75.5/27.8 CFM
Evaporator:Fin Type 138*125*34mm
Throttle Valve:Capillary Φ2.0
Operating Ambient Temperature:5 ～ 55℃
Motor Speed:2000 ~ 6000rpm
Driver Board:Variable Frequency Controller
Compressor protection:Controller Auto-Protecting
Super small volume: 338*208*145mm (13.3*8.2*5.7 inch)
Super lightweight: 5kgs(11.02lbs)
Applications:
Small Space Cooling;
Compact Air Conditioning;
Portable & compact cycle cooling;
DC air conditioning system uses our vapor compression technology to chill the air within an enclosed environment.
The air removes the heat from room and provides circulating chilled air without need to change user's existing system architecture.
Attentions:
1. Please check evaporator & condenser installation properly, when compressor is failed or poor refrigerating. Make sure the system is complete vacuum and no water inside. Refrigerant oil lacking also leads to poor refrigerating capacity.
2. Notice, Refrigerant oil will be released when we are charging refrigerant gas. Make sure the compressor has enough refrigerant oil (50g). Or compressor motor will face possible jammed or stuck due to oil blockage.
