9 TFT LCD Quad Split Monitor with Remote Control Z27232
9 TFT LCD Quad Split Monitor with Remote Control Z27232

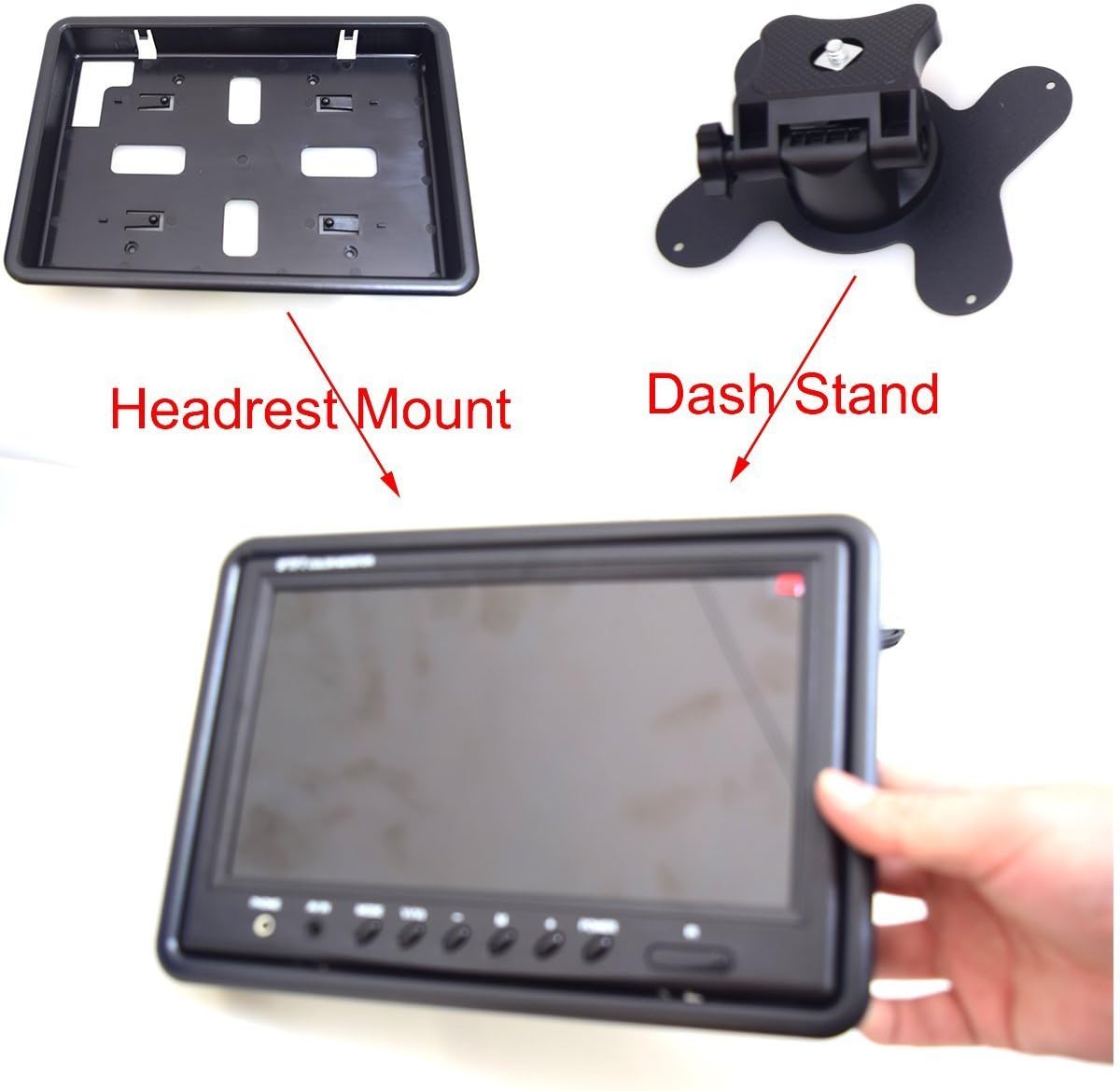

High resolution screen with 800 x 480 Pixels. Comes with an IR remote controller, headrest mounting bracket and dash stand
Support rotating the screen and adjust the brightness, contrast, color.
Video input: 4 RCA AV Sockets (16:9 Screen), each channel has signal wire for backup or turning trigger.
Special Design for Truck Multi-Camera Surveillance System. For More Wiring Cables & Adapters, please search code: B019TUJ0MK, B01AZ354V6, B019TUJ15Q. For More Backup Cameras: B01AAARUKM,B01ECP9GP8,B01B7ZNJH2,B01B7ZNG5M,B01B7ZNIBE,B019TT6FJM. For Front View / Side View Camera: B017GC4GTA
Features:

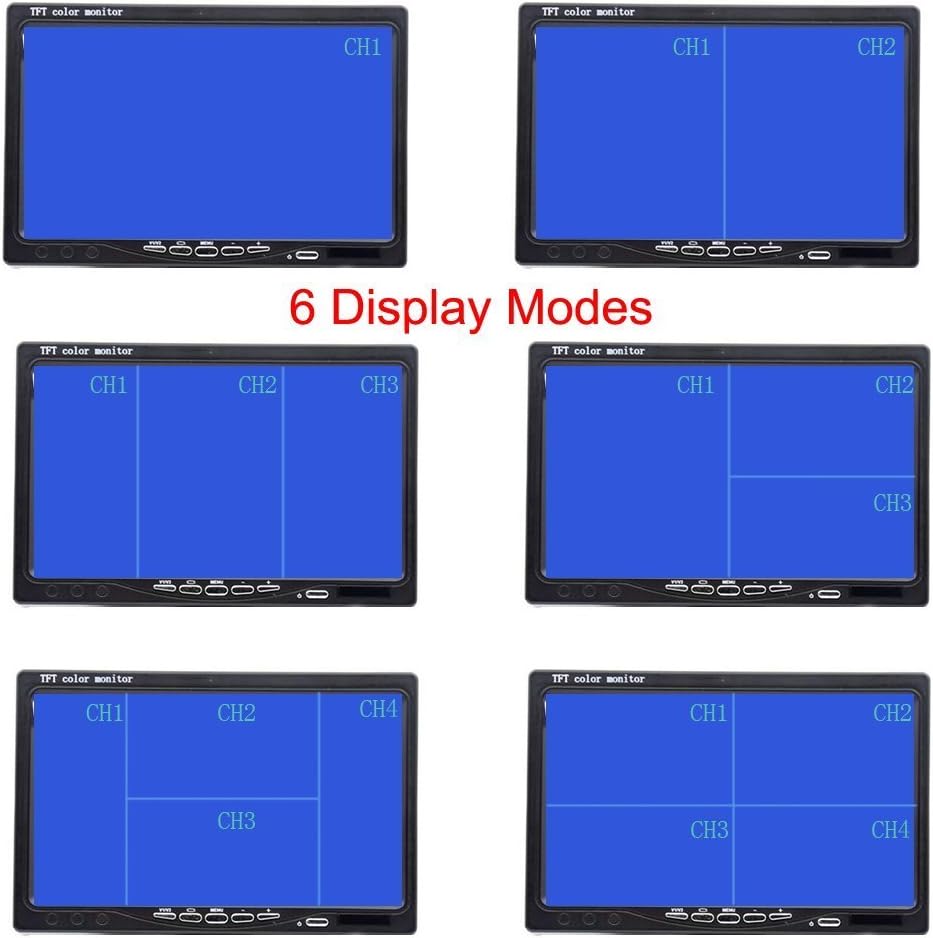

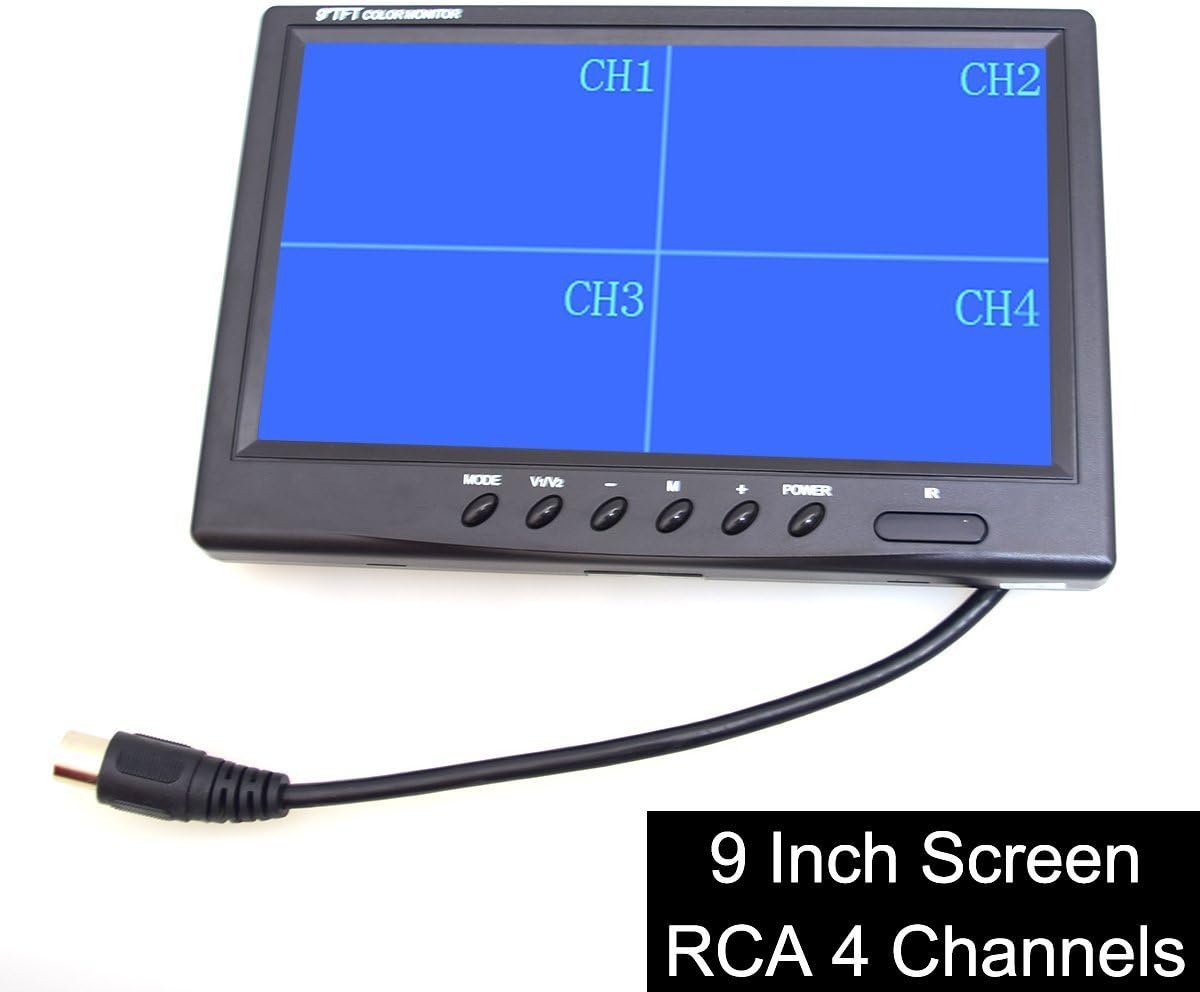

9 Inch TFT LCD monitor with built in Split Function (Single, Dual, Quad Image)
Screen:(16:9)
Resolution Degree:800(W)xRGBx480(H)
System:PAL/NTSC
Screen Size: 198mm X 110mm

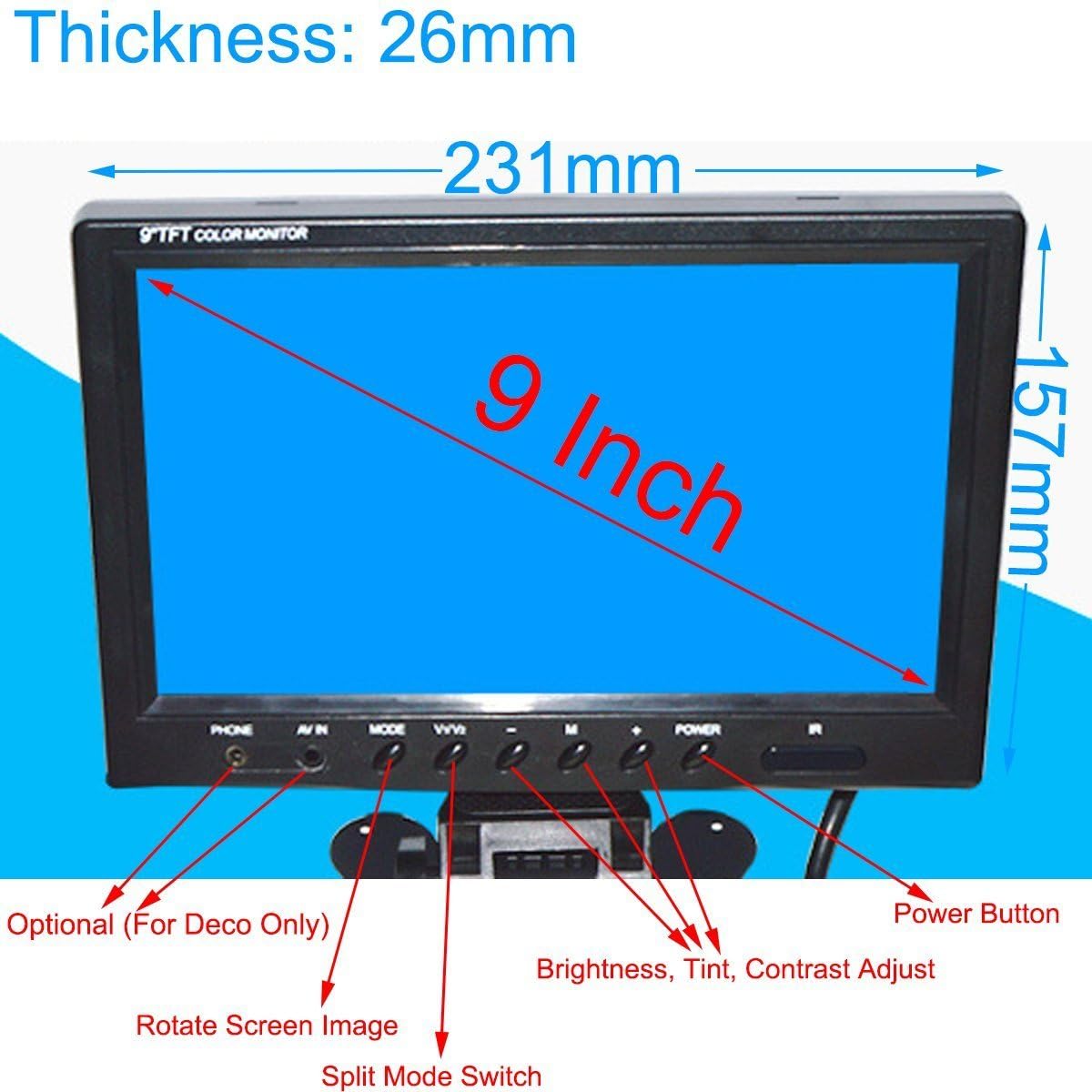

Outer Frame Size: 231mm X 157mm X 26mm
Power Supply: DC12V- 35V Good for Truck
Power:About 7.5W
Opeartion Temperature:-20~70 Cels Degree
Storage Temperature:-20~80 Cels Degree
Operation Mode: Remote control+Keystroke;Remote control and keystroke can switch pictures at four directions
FOUR Images at the same time on a display.
Four video inputs: AV1, AV2, AV3, AV4. Independence (full screen) display.
Independant control / setting of AV1, AV2, AV3, AV4 via remote control and panel.Specification:
Screen size: 7 inch (diagonal length), digital screen
Type: Brand new panel, high resolution
Video input: 4 ways AV inputs
System: PAL & NTSC auto switching
Resolution: 800R.G.B x480 dots
Power supply: Power supply: DC 12 V compatible
Display: High resolutions with quad pictures
Remote control, OSD menu: Full image,/ 2 images /4 images adjustable
Automatic switching with trigger
Suitable for back view/ side cameras
[16 : 9 ] wide screen display

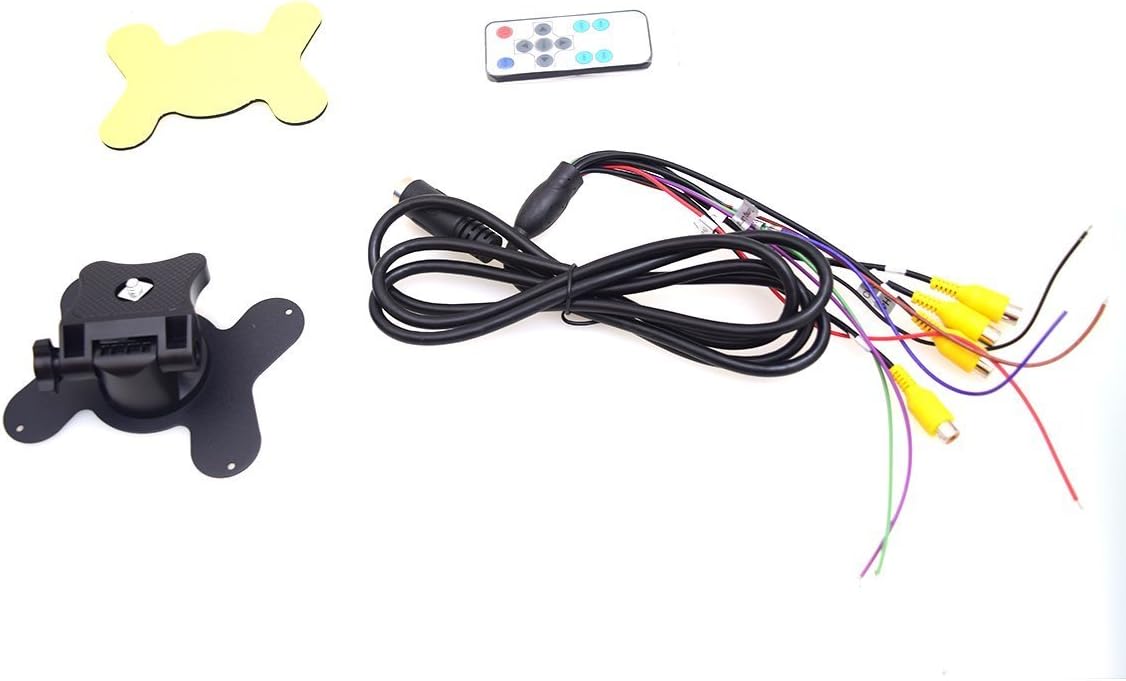

Package included:
1 X 9' Quad Split Monitor
1 X Remote Control
1 X AV Cable
1 X Headrest Mounting Bracket
1 X Dash Mounting Base and 3M Sticker
1 X User Manual
